本文介绍顺络电感生产厂家顺络电子、顺络电感官网、顺络电感规格书、顺络电感种类、顺络电感产品目录、顺络电感代理商等顺络电感相关信息
目录
1、顺络电感生产厂家顺络电子简介
2、顺络电感种类
3、顺络电感产品目录
4、顺络电感规格书
5、顺络电感官网和联系方式

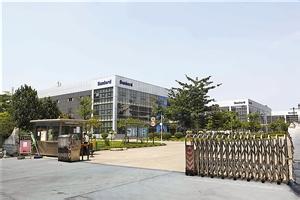

一、顺络电感生产厂家顺络电子简介 深 圳顺络电子股份有限公司（深交所：002138/顺络电子）成立于2000年，是一家专业从事各类片式电子元件研发、生产和销售的高新技术企业，主要产品 包括叠层片式电感器、绕线片式电感器、共模扼流器、压敏电阻器、NTC热敏电阻器、LC滤波器、各类天线、NFC磁片、无线充电线圈组件、电容、电子变压 器等电子元件。产品广泛应用于通讯、消费类电子、计算机、LED照明、安防、智能电网、医疗设备以及汽车电子等领域。

二、顺络电感种类
1、射频电路用电感
2、一般信号线用电感
3、电源线用电感

三、顺络电感产品目录
射频电路用电感目录

产品照片	类别	电感	额定电流	尺寸代码	系列	目录
	Multilayer/High Q	0.6 to 100nH	60 to 600mA	0603/0201 inch	SDCL0603Q-02	SDCL0603Q -02 PDF
	Multilayer/STD	1.0 to 360nH	50 to 400mA	1005/0402 inch	SDCL1005C	SDCL-D PDF
		1.0 to 470nH	150 to 500mA	1608/0603 inch	SDCL1608C
	Multilayer/High Q	1.0 to 15nH	430 to 1000mA	1005/0402 inch	HQ1005	HQ PDF
	Multilayer/High SRF	1.0 to 100nH	100 to 500mA	1005/0402 inch	SDHL1005	SDHL PDF
		10 to 180nH	150 to 500mA	1608/0603 inch	SDHL1608
	Wire Wound/STD	0.8 to 120nH	110 to 1000mA	1005/0402 inch	SDWL1005C	SDWL-C PDF
		1.6 to 560nH	70 to >1150mA	1608/0603 inch	SDWL1608C
		2.2 to 1000nH	150 to >600mA	2012/0805 inch	SDWL2012C
		4.7 to 8200nH	150 to 1000mA	2520/1008 inch	SDWL2520C
		3.3 to 1200nH	300 to1000mA	3216/1206 inch	SDWL3216C
		3.9 to 8600nH	200 to 1000mA	3225/1210 inch	SDWL3225C
		1000 to 33000nH	145 to 480mA	4532/1812 inch	SDWL4532C
	Wire Wound	1.5 to 100nH	120 to 1000mA	1005/0402 inch	SDWL1005C-M	SDWL-C-M PDF
		2.2 to 470nH	75 to 1400mA	1608/0603 inch	SDWL1608C-M
	Wire Wound	1.3 to 75nH	320 to 3150mA	1005/0402 inch	SDWL1005C-M8X	SDWL-C-M8X PDF
	Lower DCR and Hight Q	1.0 to 51nH	360 to 2300mA	1005/0402 inch	SDWL1005-CP	SDWL-CP PDF
		1.8 to 390nH	170 to 2100mA	1608/0603 inch	SDWL1608-CP

产品照片	类别	电感	额定电流	尺寸代码	系列	目录
	Multilayer/STD	0.047 to 3.3μH	10 to 25mA	1005/0402 inch	SDFL1005	SDFL PDF
		0.047 to 33μH	1 to 50mA	1608/0603 inch	SDFL1608
		0.047 to 47μH	4 to 300mA	2012/0805 inch	SDFL2012
		0.047 to 47μH	5 to 300mA	3216/1206 inch	SDFL3216
	Wire Wound	0.018 to 0.2μH	390 to 1400mA	1005/0402 inch	WL1005FS	WL-FS PDF
		0.047to 22μH	70 to 2600mA	1608 0603 inch	WL1608FS
	Wire Wound/STD	0.27 to 68μH	40 to 350mA	2012/0805 inch	SDWL2012FW	SDWL-FW PDF
		0.33 to 10μH	300 to 700mA	2520/1008 inch	SDWL2520FW
		1.5 to 18μH	130 to 320mA	3216/1206 inch	SDWL3216FW
		0.12 to12μH	140 to 450mA	3225/1210 inch	SDWL3225FW

产品照片	类别	电感	额定电流	尺寸代码	系列	目录
	Multilayer/STD, For Choke	0.1 to 10μH	50 to 700mA	1608/0603 inch	MCL1608	MCL PDF
		0.1 to 10μH	60 to 1000mA	2012/0805 inch	MCL2012
	Multilayer/STD	0.22 to 2.2μH	250 to 1700mA	1608/0603 inch	MPH1608	MPH PDF
		0.47 to 10μH	130 to 1300mA	2012/0805 inch	MPH2012
		0.47 to 10μH	200 to 1600mA	2016/0806 inch	MPH2016
		0.47 to 10μH	250 to 1500mA	2520/1008 inch	MPH2520
	Multilayer/STD	2.2 to 4.7μH	180 to 300mA	2012/0805 inch	MCL2012A	MCL-A PDF
		1.0 to 2.2μH	550 to 900mA	2016/0806 inch	MCL2016A
		1.5 to 4.7μH	250 to 600mA	2520/1008 inch	MCL2520A
	Magnetic Shielded(Large Isat)	0.24 to 10μH	0.95 to 5.5A	2.0×1.6×1.0	WPN201610	WPN PDF
		0.33 to 10μH	1 to 5.5A	2.5×2.0×1.0	WPN252010
		1.0 to 4.7μH	3 to 4.2A	2.5×2.0×1.2	WPN252012
		1.0 to 4.7μH	1.5 to 5.4A	3.0×3.0×1.2	WPN3012
		0.33 to 22μH	1.35 to 9.7A	4.0×4.0×1.2	WPN4012
		1.0 to 3.3μH	5.5 to 3.5A	4.0×4.0×2.0	WPN4020
	Magnetic Shielded(Large Isat)	0.47 to 22μH	1.7 to 11A	6.5×6.5×3.0	WPL6530	WPL PDF
	Wire Wound/Shielded Type with Magnetic Glue, Low DCR	0.16 to 10μH	0.5 to 4.3A	2.0×1.6×1.0	SPH201610H	SPH PDF
		0.05 to 2.2μH	0.75 to 4.8A	2.0×1.6×1.0	SPH201610U
		0.16 to 33μH	0.35 to 5.2A	2.0×2.0×1.0	SPH202012H
		0.16 to 33μH	0.25 to 3.6A	2.5×2.0×1.0	SPH252010H
		0.16 to 47μH	0.25 to 6.5A	2.5×2.0×1.2	SPH252012H
		1 to 22μH	0.5 to 2.2A	3.0×3.0×1.2	SPH3012
		0.47 to 4.7μH	0.35 to 2.4A	3.0×3.0×1.5	SPH3015
		0.47 to 100μH	0.25 to 3A	4.0×4.0×1.2	SPH4012
		1.0 to 330μH	0.26 to 4.0A	4.0×4.0×1.8	SPH4018
		0.33μH	7.5A	4.0×4.0×2.0	SPH4020
		0.33 to 0.47μH	8.2 to 17A	4.0×4.0×3.0	SPH4030
		1.0 to 47μH	1.1 to 7.8A	8.0×8.0×3.0	SPH8030H
	Wire Wound/STD, Shielded Type with Magnetic Glue	0.47 to 10μH	0.78 to 3.35A	2.5×2.0×1.0	SWPA252010S	SWPA PDF
		0.47 to 22μH	0.59 to 4.27A	2.5×2.0×1.2	SWPA252012S
		1.0 to 56μH	0.21 to 1.40A	3.0×3.0×1.0	SWPA3010S
		0.82 to 100μH	0.21 to 2.05A	3.0×3.0×1.2	SWPA3012S
		1.0 to 68μH	0.28 to 2.32A	3.0×3.0×1.5	SWPA3015S
		1.0 to 22μH	0.45 to 2.0A	4.0×4.0×1.0	SWPA4010S
		1.0 to 220μH	0.27 to 4.80A	4.0×4.0×1.8	SWPA4018S
		0.33to 100μH	0.48 to 7.5A	4.0×4.0×2.0	SWPA4020S
		1.2 to 47μH	0.40 to 3.10A	4.0×4.0×2.6	SWPA4026S
		0.68 to 120μH	0.55 to 6.8A	4.0×4.0×3.0	SWPA4030S
		1.0 to 15μH	1.25 to 4.40A	5.0×5.0×1.2	SWPA5012S
		0.47 to100μH	0.53 to 6.15A	5.0×5.0×2.0	SWPA5020S
		1.0 to 150μH	0.65 to 7.35A	5.0×5.0×4.0	SWPA5040S
		0.50 to 33μH	0.95 to 4.50A	6.0×6.0×2.0	SWPA6020S
		1.0 to 100μH	0.65 to 5.75A	6.0×6.0×2.8	SWPA6028S
		0.47 to 330μH	0.57 to 15A	6.0×6.0×4.5	SWPA6045S
		0.82 to 330μH	0.68 to 13.8A	8.0×8.0×4.0	SWPA8040S
	Wire Wound/STD, Magnetic Shielded	1.0 to 330μH	0.50 to7.00A	12.5×12.5×5.0	SWRB1204S	SWRB-S PDF
		1.0 to 680μH	0.48 to 8.00A	12.5×12.5×6.0	SWRB1205S
		1.0 to 1000μH	0.55 to 10.00A	12.5×12.5×8.0	SWRB1207S
	Wire Wound/STD, Magnetic Shielded	3.3 to 82μH	0.38 to 1.94A	7.0×6.8×3.0	SWRH0602B	SWRH-B PDF
		10 to120μH	0.39 to 1.35A	7.0×6.8×5.0	SWRH0604B
		2.2 to180μH	0.39 to3A	7.8×7.8×4.0	SWRH0703B
		10 to 270μH	0.34 to 1.84A	7.8×7.8×5.0	SWRB0704B
		2.2 to 390μH	0.39 to 4 A	10.5×10.5×5.0	SWRH1004B
		1.0 to 330μH	0.50 to 7.00A	12.5×12.5×5.0	SWRH1204B
		1.0 to 680μH	0.48 to 8.00A	12.5×12.5×6.0	SWRH1205B
		1.0 to 1000μH	0.55 to 10.00A	12.5×12.5×8.0	SWRH1207B
	Wire Wound/STD, Magnetic Shielded	1.0 to 120μH	0.65 to 6.50A	10.6×10.5×3.0	SWRH1003C	SWRH-C PDF
		1.5 to 330μH	0.52 to 6.50A	10.6×10.5×4.0	SWRH1004C
		3.3 to 820μH	0.48 to 6 A	10.6×10.5×5.2	SWRH1005C
	Wire Wound/STD, Magnetic Shielded	2.5 to 100μH	0.75 to 4.50A	10.1×8.3×3.0	SWRH8D28C	SWRH-DC PDF
		1.5 to 100μH	0.88 to 6.00A	10.1×8.3×4.0	SWRH8D38C
		2.0 to 100μH	0.80 to 5.50A	10.1×8.3×4.5	SWRH8D43C
	Wire Wound/STD, Magnetic Shielded	1.2 to 10μH	0.35 to 0.90A	3.3×3.3×1.3	SWRH2D11R	SWRH-DR PDF
		1.5 to 12μH	0.62 to 1.80A	3.3×3.3×1.6	SWRH2D14R
		2.2 to 33μH	0.24 to 0.85A	3.3×3.3×2.1	SWRH2D18R
		2.7 to 18μH	0.21 to 0.50A	4.2×4.2×1.3	SWRH3D11R
		1.5 to 22μH	0.52 to1.85A	4.2×4.2×1.6	SWRH3D14R
		1.5 to 33μH	0.32 to 1.55A	4.2×4.2×1.8	SWRH3D16R
	Wire Wound/STD, Magnetic Shielded	1.5 to 33μH	0.32 to 1.35A	4.2×4.2×1.8	SWRH3D16S	SWRH-DS PDF
		3.3 to 47μH	0.35 to 1.45A	4.2×4.2×2.1	SWRH3D18S
		3.3 to 47μH	0.48 to 2.00A	4.2×4.2×3.2	SWRH3D28S
		1.0 to 68μH	0.24 to 1.72A	5.0×5.0×2.0	SWRH4D18S
		1.2 to 150μH	0.24 to 2.56A	5.0×5.0×3.0	SWRH4D28S
		3.3 to 150μH	0.31 to 2.00A	6.0×6.0×2.0	SWRH5D18S
		2.2 to330μH	0.25 to 2.60A	6.0×6.0×3.0	SWRH5D28S
		3.3 to 390μH	0.23 to 2.80A	7.0×7.0×3.0	SWRH6D28S
		1.5 to 1000μH	0.20 to 5.20A	7.0×7.0×4.0	SWRH6D38S

四、顺络电感规格书
顺络电感规格书请点击上面目录中相应顺络电感种类或系列对应最右边的链接查看或下载（来自顺络官网的文件，绝对安全）

五、顺络电感官网和联系方式
顺络电感官网是：www.sunlordinc.com
顺络电感联系方式：
